slim tandem drawer system
slim tandem drawer system Specification
- Height
- Panel height options-84 mm, 115 mm, 167 mm, 199 mm
- Features
- Full extension, soft closing, sleek slim side panels, easy installation, anti-corrosive finish
- Width
- Fits cabinet width 300 mm to 1200 mm
- Length
- 350 mm - 550 mm
- Load Capacity
- Up to 40 kg
- Noise Level
- Silent (soft close mechanism)
- Equipment Type
- Drawer sliding system
- Technique
- Cold-rolled steel, precision engineered
- Application
- Modular drawers and storage systems
- Material
- High-quality steel with powder coating
- Other Material
- Plastic (end caps and accessories)
- Installation Guideline
- Can be installed in modular kitchen cabinets using standard screws and fittings
- Size
- Customized as per cabinet width
- Use
- Kitchen, wardrobe, and office storage
- Power Consumption
- Nil
- Storage Capacity
- Varies with drawer width and height
- Usage & Applications
- Suitable for kitchen utensils, cutlery, wardrobe articles, and office files
- Capacity
- Standard drawer load capacity up to 40 kg
- Shape
- Rectangular profile with slim sides
- Adjustability
- 3D front adjustment (up, down, left, right)
- Maintenance
- Wipe with soft damp cloth; no abrasive cleaning agents
- Accessories Included

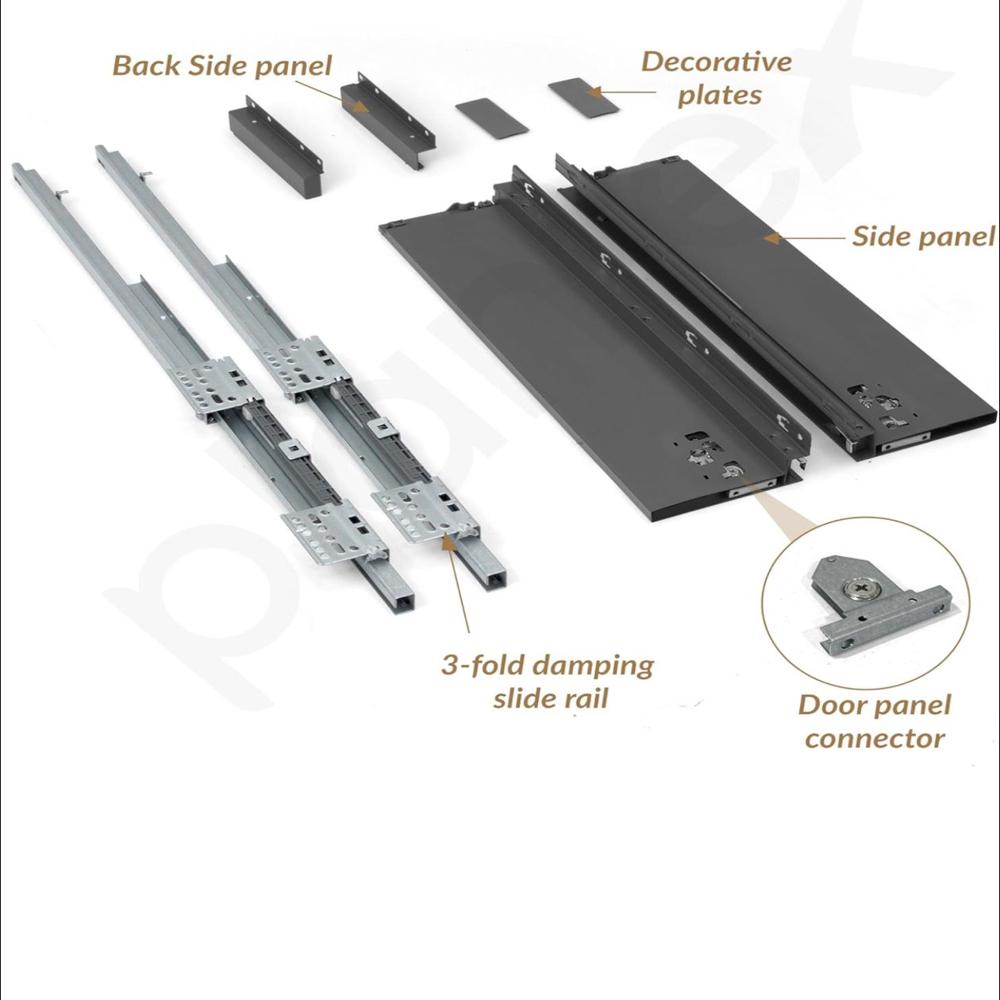

- Side panels, runners, rear and front panels, fixing clips, and screws
- Compatibility
- Compatible with 16 mm or 18 mm side boards
- Color Options
- Grey, white, anthracite, custom available
- Finish
- Powder-coated, anti-rust and scratch-resistant
- Side Panel Thickness
- Approx. 13 mm
- Slide Type
- Full extension
- Runner Type
- Concealed under-mount tandem runner with soft close
slim tandem drawer system About
Product Specification
General Description:

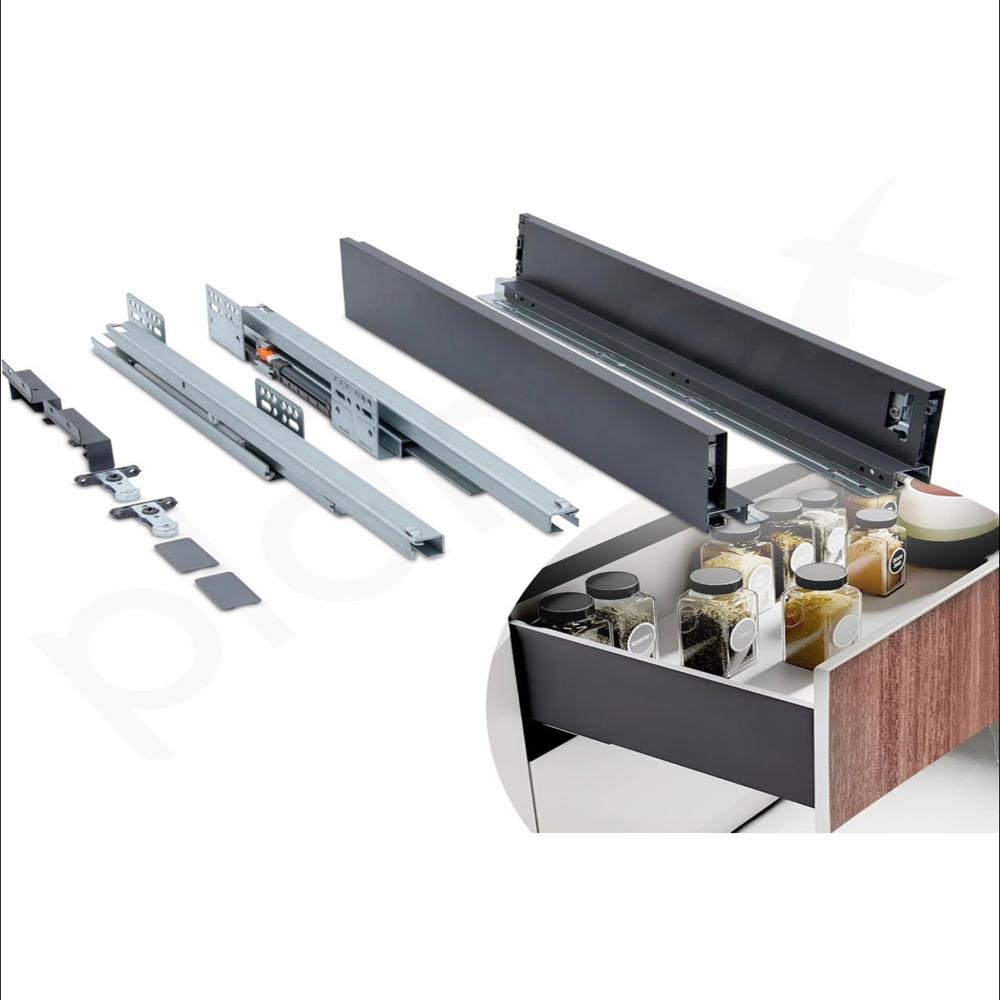

Slim tandem box is a modern drawer system with slim side panels and soft-close mechanism, widely used in modular kitchens, wardrobes, and furniture.
Technical Specifications:
1. Material:
- High-quality cold rolled steel / powder-coated metal
- Anti-rust coating / corrosion resistant
2. Finish:
- Anthracite grey / silver / white / matte finish
3. Load Capacity:
- Standard: 30 kg 50 kg
- Premium models: up to 70 kg
4. Drawer Height Options:
- 84 mm (34 inch)
- 122 mm (6 inch)
- 172 mm (8 inch)
- 200+ mm (deep drawer)
5. Drawer Depth (Length):
- 300 mm (12 inch)
- 350 mm
- 400 mm
- 450 mm
- 500 mm
- 550 mm
6. Mechanism:
- Soft close (hydraulic damping)
- Silent and smooth closing
- Anti-slamming system
7. Extension Type:
- Full extension (100% opening)
- Easy access to entire drawer
8. Runner System:
- Under-mount concealed runners
- High precision movement
- Long life cycle (up to 80,000 cycles tested)
9. Side Panel Thickness:
- Slim design (approx. 1213 mm side panel)
10. Installation:
- Easy clip-on fitting
- Adjustable front panel (2D/3D adjustment)
11. Applications:
- Modular kitchen drawers
- Wardrobes
- Office furniture
- Bathroom cabinets
Innovative Storage for Modern Spaces
Designed for contemporary modular cabinetry, the slim tandem drawer system combines sleek aesthetics and functional excellence. Its slim side panels maximize usable space, while the robust steel construction and powder coating provide long-term strength and resistance to corrosion. The soft-close concealed runners give a smooth, quiet experience every time the drawer is used, making it suitable for upscale kitchens, wardrobes, and office storage alike.
Effortless Installation and Versatile Use
The system comes complete with side panels, runners, fixing clips, and all necessary fittings, ensuring straightforward installation in modular furniture. With comprehensive size and color options and compatibility for 16 mm or 18 mm side boards, it adapts effortlessly to customized cabinetry. Whether you need to store kitchen utensils, wardrobe items, or office supplies, this drawer system guarantees optimal organization.
FAQ's of slim tandem drawer system:
Q: How is the slim tandem drawer system installed in modular cabinets?
A: The drawer system is installed using the included fixings-standard screws, side panels, runners, and clips-making it easy to fit into modular kitchen, wardrobe, or office cabinets. The 3D front adjustment feature ensures precise alignment during installation.Q: What materials are used, and how do they enhance durability?
A: Manufactured from high-quality cold-rolled steel and powder-coated for an anti-rust, scratch-resistant finish, the drawer system is designed for long-term resilience. Essential plastic components, like end caps, complement the sturdy steel structure.Q: When is it beneficial to use a slim tandem drawer system?
A: This system is ideal when you require sleek, space-saving storage in kitchen, wardrobe, or office environments-especially when silent, soft-closing operation and high load capacity (up to 40 kg) are important.Q: Where can the system be applied, and what sizes are available?
A: Suitable for a wide range of cabinet widths (300-1200 mm) and panel heights (84, 115, 167, 199 mm), this system fits most modular kitchen, wardrobe, and office cabinetry, supporting custom sizes for specific requirements.Q: What is the process for maintaining the drawer system?
A: Maintenance is simple-just wipe the surfaces with a soft, damp cloth and avoid abrasive cleaning agents to preserve the powder-coated finish and maintain functionality.Q: How does the concealed under-mount runner system improve drawer usage?
A: The concealed runners offer silent, full-extension movement and feature soft-close technology, providing a smooth, quiet, and safe closing action that prevents slamming and enhances ease of use.Q: What are the customization options for color and size?
A: The drawer system is available in standard grey, white, and anthracite, with custom color options possible upon request. Sizes are tailored to your cabinet's width and offer multiple height configurations.Tell us about your requirement
